Model: ST-2800
| Model | ST-2800 |

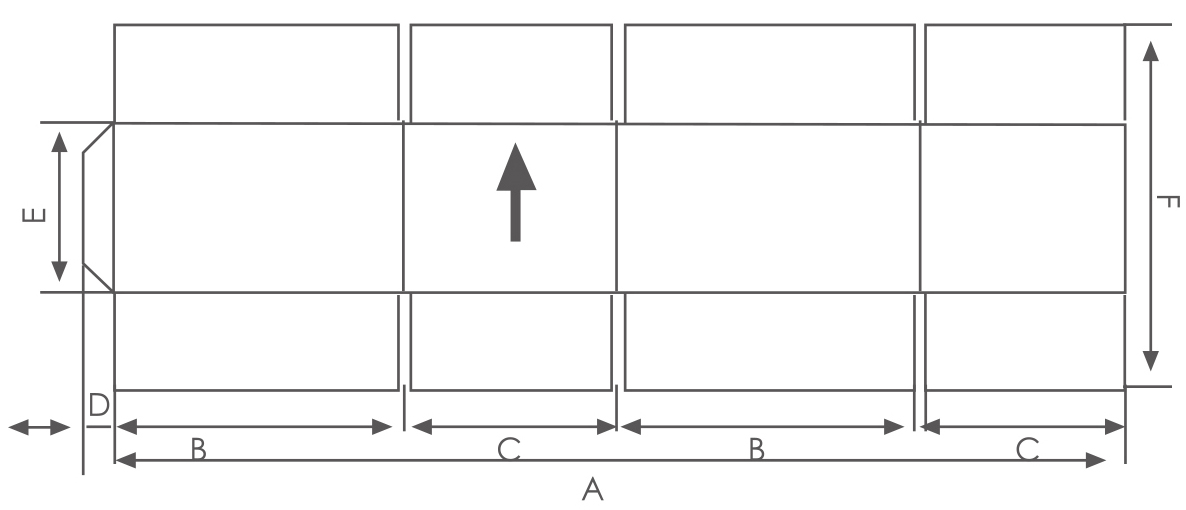

| Max sheet width (B+C) x2 | 2800mm |
| Min sheet width (B+C) x2 | 606mm |
| Max length (F) | 1515mm |
| Min length (F) | 300mm |
| Side mark (C) | 125-500mm |
| Stitching flap (D) | 30-50mm |
| Paperboard thickness | 3-10mm |
| Machine speed | 500 stitches/min |
| Stitching distance | 20-120mm |
| Number of stitching | 2-99 stitches |
| Stitching wire | Width: 1.95 (1.8)mm (+/- 0.05mm), thickness: 0.75mm (+/- 0.03mm) |
| Stitching forming | ① // // // ② / / / ③ // / // |
| Height of feeder | 900mm |
| Total power | 4.5kw |
| Voltage | 380V, 50HZ, 3phase |
| Weight | 2000kg |
| Machine dimension | 2850x2700x1900mm |

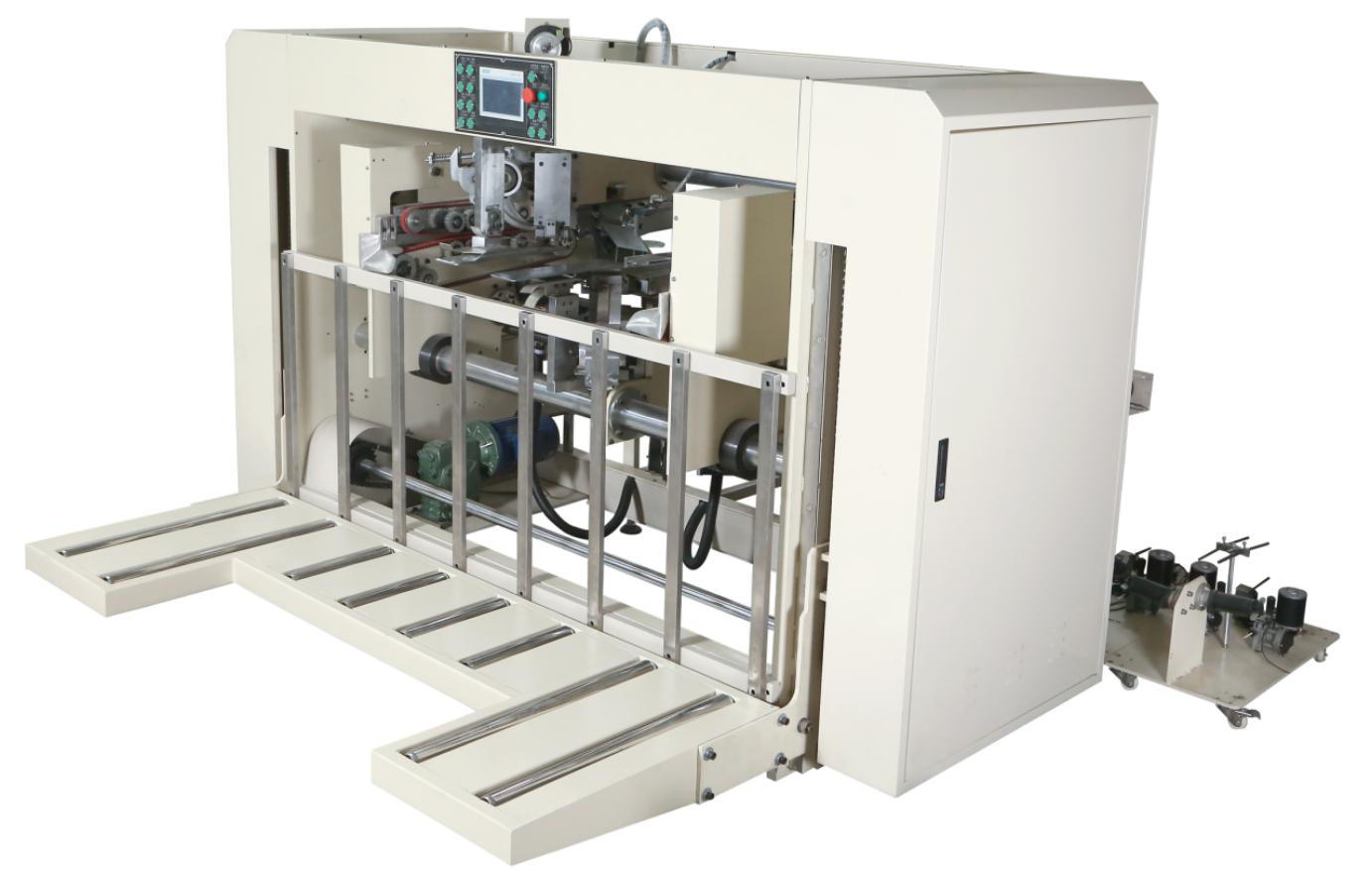

Model: DS-1600
| Model | DS-1600 |

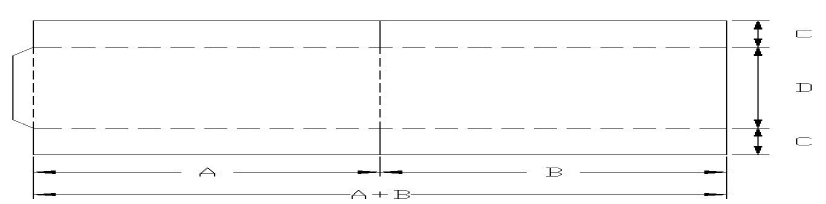

| Max size (A+B) x 2 | 3200mm |
| Min size (A+B) x 2 | 1060mm |
| Max length (A) | 1450mm |
| Min length (A) | 350mm |
| Max width (B) | 800mm |
| Min width (B) | 130mm |
| Min height (C+D+C) | 380mm |
| Max machine speed | 600 stitches/min |
| Stitching distance | 30-120mm |
| Stitching quantity | 2-99 stitches |
| Stitching wire | Width: 1.95mm (+/- 0.05mm), thickness: 0.75mm (+/- 0.03mm) |
| Stitching forming | ① // // // ② / / / ③ // / // |
| Material | 3ply and 5ply corrugated board |
| Total power | 8KW |
| Voltage supply | 380V, 50HZ, 3phase, 5 lines |
| Machine weight | 2900kg |
| Machine dimension | 3500x3200x2000mm |
